Run summary · Phase 5
ficus-batched-30k
A.7 × multi-scene: ficus 30k with SPLAT_BATCHED_FORWARD=1
partial pass
01
設定
- dataset
- /Users/otkrickey/dev/3dgs-workspace/datasets/nerf_synthetic/ficus
- iterations
- 30,000
- seed
- 42
- capacity
- 1,000,000 splats
- sh_degree
- 3
- loss
- L1Ssim
- lambda
- 0.200
- ssim
- window=7 sigma=1
- backend.backward
- Simd
- backend.loss_path
- Gpu
02
結果
Val PSNR
14.05dB
Wallclock
22m 32s
Final splats
61,599
Final loss
2.518105e-2
03
描画結果

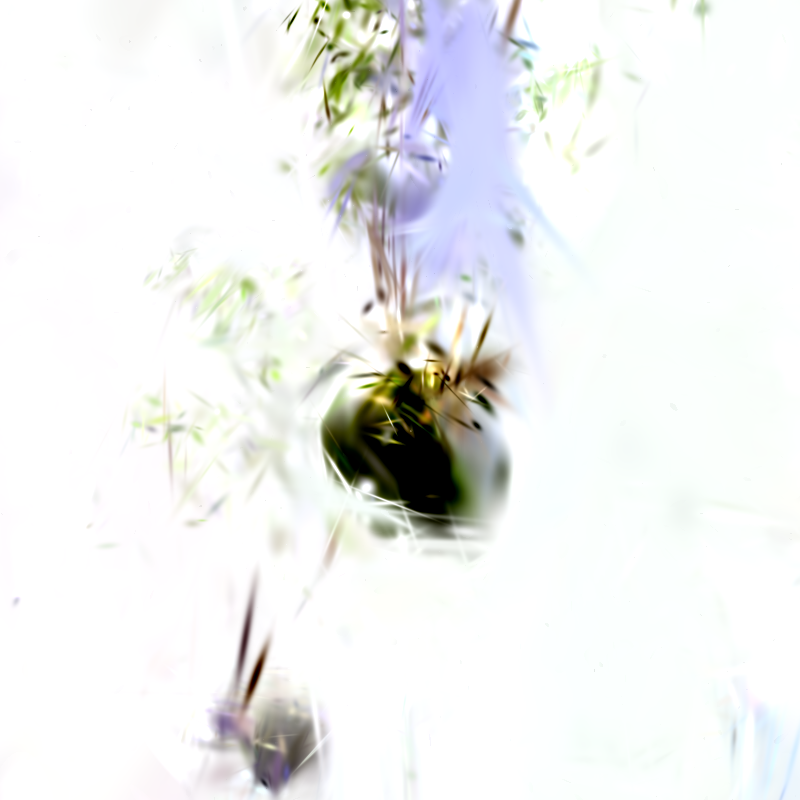

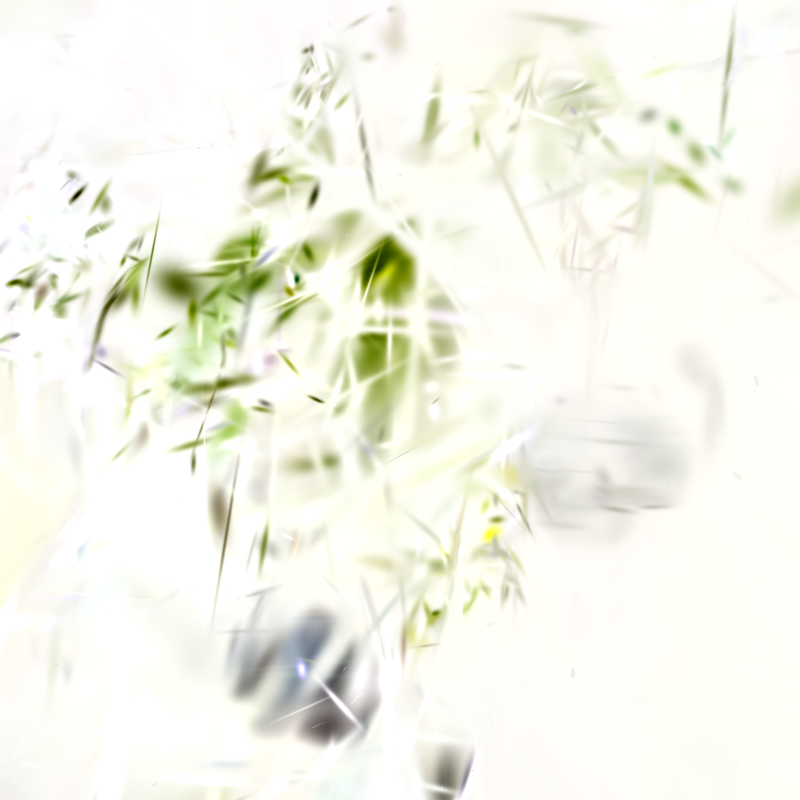

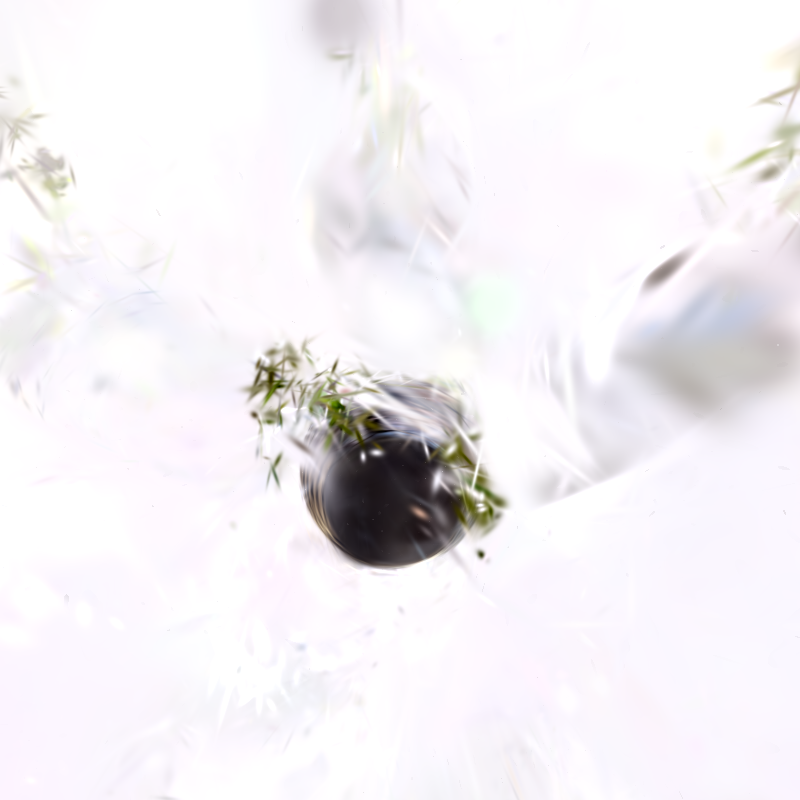

学習後の eval pipeline から取得した代表視点。
00
01
0204
3D ビューワー
学習結果 PLY を .splat 形式に変換し、antimatter15/splat の WebGL ビューワーで対話表示。
05
推移
Loss curve — 反復ごとの training loss
Splat count — refine の発火と最終構成
06
中間ログ抜粋
| iter | 本 run loss |
|---|---|
| 1 | 3.3979e-1 |
| 500 | 6.8272e-2 |
| 1,000 | 7.4863e-2 |
| 1,500 | 7.1187e-2 |
| 2,000 | 4.8254e-2 |
| 2,500 | 4.2996e-2 |
| 3,000 | 3.9537e-2 |
| 3,500 | 3.6082e-2 |
| 4,000 | 3.5773e-2 |
| 4,500 | 3.5240e-2 |
| 5,000 | 3.4428e-2 |
| 5,500 | 3.4291e-2 |
| 6,000 | 3.2399e-2 |
| 6,500 | 3.2789e-2 |
| 7,000 | 3.2538e-2 |
| 7,500 | 3.1365e-2 |
| 8,000 | 2.9101e-2 |
| 8,500 | 2.9953e-2 |
| 9,000 | 3.0897e-2 |
| 9,500 | 2.8505e-2 |
| 10,000 | 2.8757e-2 |
| 10,500 | 2.8942e-2 |
| 11,000 | 2.7979e-2 |
| 11,500 | 2.7707e-2 |
| 12,000 | 2.6751e-2 |
| 12,500 | 2.8776e-2 |
| 13,000 | 2.7803e-2 |
| 13,500 | 2.8773e-2 |
| 14,000 | 2.8588e-2 |
| 14,500 | 2.7215e-2 |
| 15,000 | 2.7247e-2 |
| 15,500 | 2.8367e-2 |
| 16,000 | 2.4840e-2 |
| 16,500 | 2.5518e-2 |
| 17,000 | 2.4405e-2 |
| 17,500 | 2.5219e-2 |
| 18,000 | 2.6227e-2 |
| 18,500 | 2.6372e-2 |
| 19,000 | 2.5493e-2 |
| 19,500 | 2.4113e-2 |
| 20,000 | 2.5061e-2 |
| 20,500 | 2.6907e-2 |
| 21,000 | 2.5759e-2 |
| 21,500 | 2.6356e-2 |
| 22,000 | 2.4152e-2 |
| 22,500 | 2.4617e-2 |
| 23,000 | 2.5016e-2 |
| 23,500 | 2.5880e-2 |
| 24,000 | 2.4385e-2 |
| 24,500 | 2.6223e-2 |
| 25,000 | 2.4212e-2 |
| 25,500 | 2.5237e-2 |
| 26,000 | 2.3314e-2 |
| 26,500 | 2.4717e-2 |
| 27,000 | 2.4253e-2 |
| 27,500 | 2.4518e-2 |
| 28,000 | 2.4340e-2 |
| 28,500 | 2.6438e-2 |
| 29,000 | 2.5565e-2 |
| 29,500 | 2.4974e-2 |
| 30,000 | 2.5181e-2 |
07
関連 finding
この run を related_runs に含む finding (Positive / Negative どちらも)。
